Stainless Steel Explosion-proof Terminal Box MAMJB04-G/Q

* Enclosure material: Q235/SS304/SS316/SS316L

* Ex mark:  II 2G Ex eb IIC T6 Gb; II 2G Ex ia IIC T6 Ga; II 2D Ex tb III C T80°C Db IP66

*Certificate:ATEX, TR CU


Stainless Steel Explosion-proof Terminal Box MAMJB04-G/Q

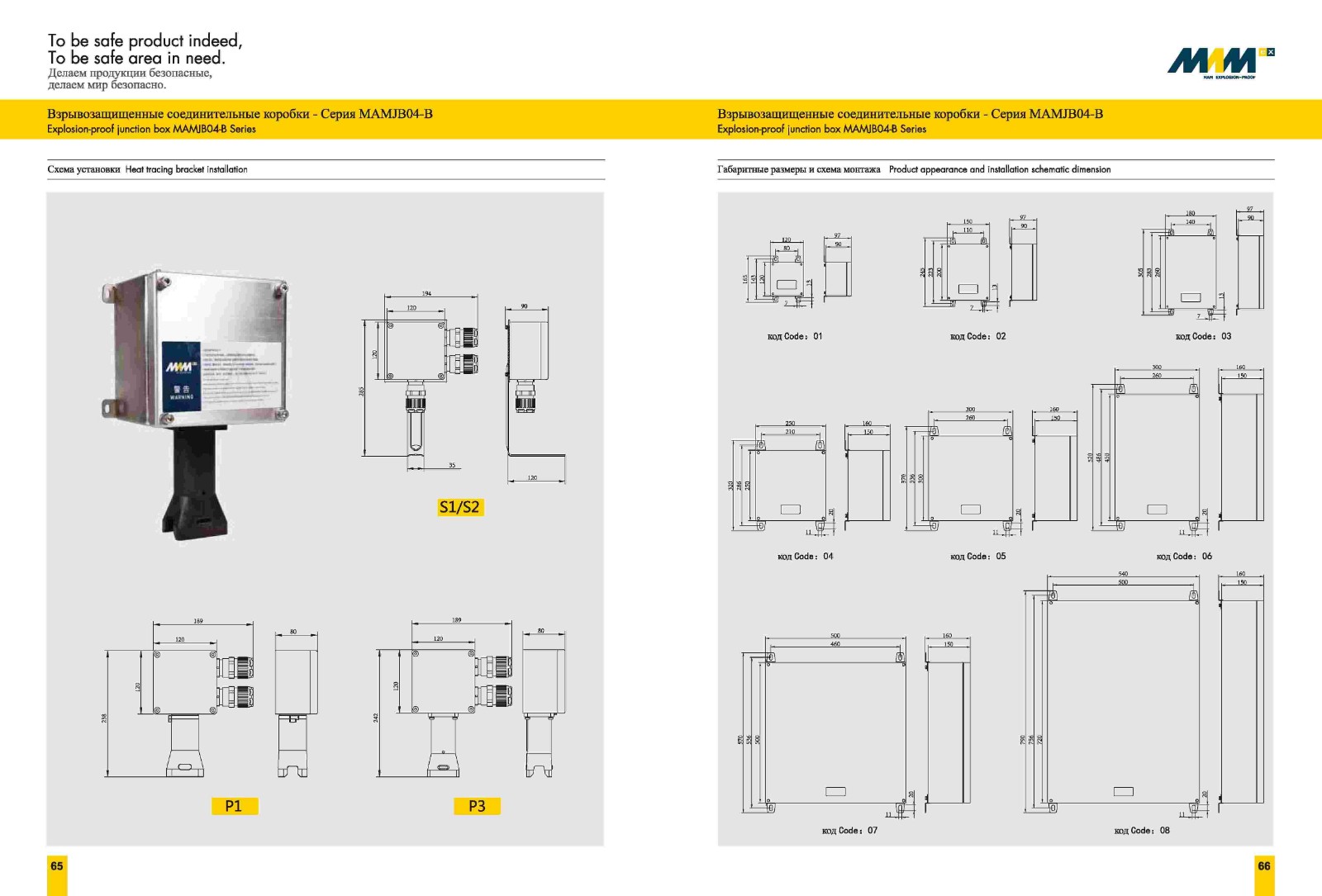

*Enclosure dimension (mm) : 120*120*90;150*170*110;250*250*150;300*300*150;300*350*150(200);400*400* 150(250);

480*480* 150(250);500*600*200(300);860*640*220(320); 1 200*800*300(400)

*Used in chemical, oil refining, oil exploitation, offshore oil platforms, oil tankers, military and other hazardous areas, Particularly suitable for on-site heating system installation distribution.

*Beautiful appearance with stainless steel material enclosure and exposed fastener.

*Different installation methods such as hanging and embedded, heat tracing bracket installation and different incoming cables such as ordinary rubber and plastic cable, armored cable and heating cable.

Explosion-proof terminal box MAMJB04-G/Q
