* Enclosure material: Aluminum AlloyZL102

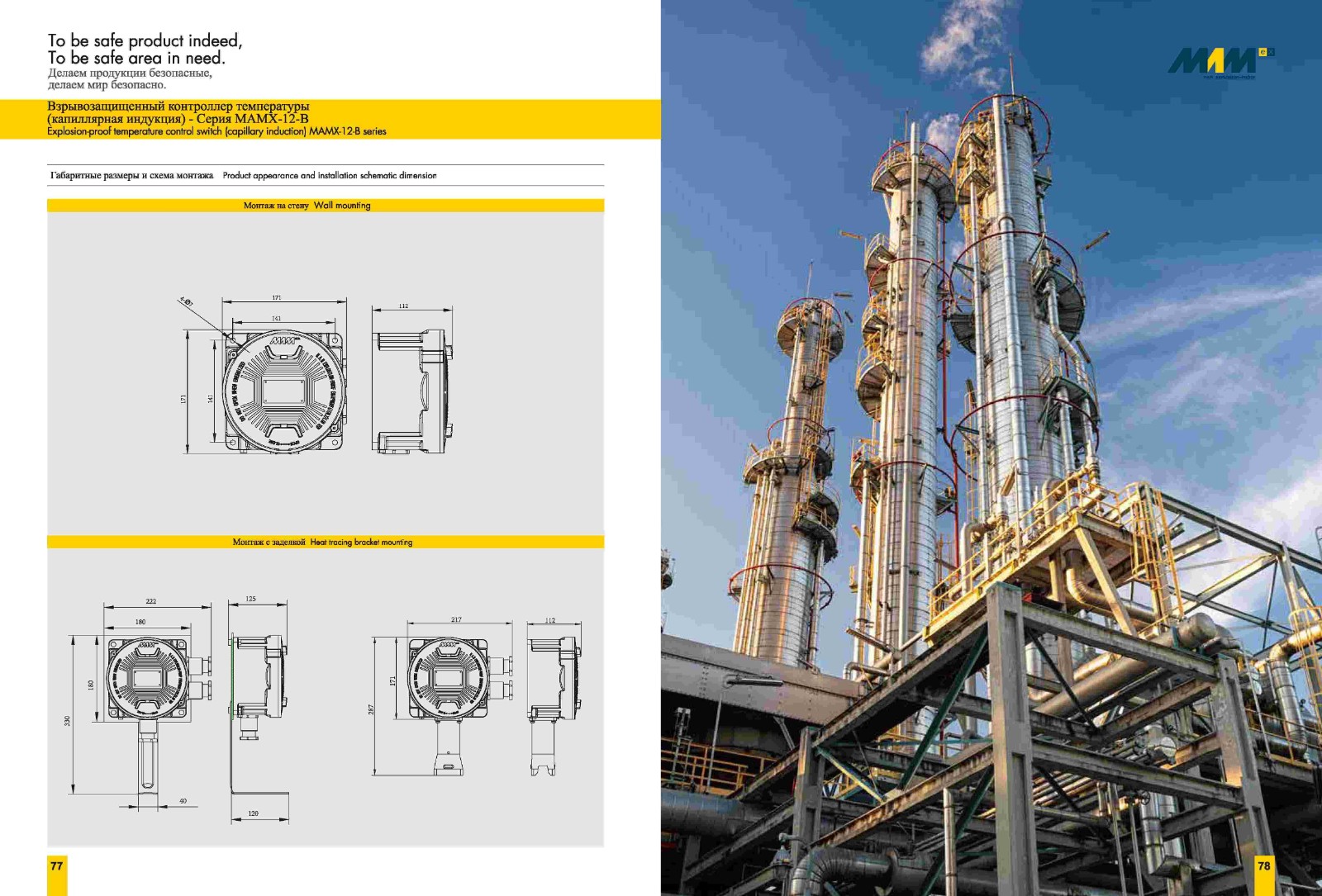

* Enclosure dimension: 161*161*109mm
* Ex mark: Ex db IIC T6...T4 Gb; Ex tb IIIC T80°C...T135°C Db P66
* Rated current: when 125/250/480VAC, current is 22A
* Switch: single pole double throw * Accuracy: ±3.3℃
* Certificate:ATEX, IECEx, TR CU
Description
Explosion-proof Temperature Control box(Capillary) MAMX-12-C2
An explosion-proof temperature control box (capillary type) is designed to safely regulate temperature in hazardous environments using a capillary sensor. This type of control box is particularly suited for industries like oil and gas, chemical processing, and pharmaceuticals, where flammable materials may be present.
*Used in chemical, oil refining, oil exploitation, offshore oil platforms, oil tankers, military and other hazardous areas;
*Suitable for controlling the heat tracing system used in anti-freezing in hazardous areas; can respond to changes in ambient temperature and can adjust the set point;
*Can be used to control a single heat tracing circuit or as a contactor to switch the signal control of multiple heat tracing circuits;
*Different installation methods such as hanging, embedded, heat tracing bracket installation and different incoming cables such as ordinary rubber and plastic cable, armored cable, and heating cable are optional.
Capillary Sensor: Utilizes a flexible tube filled with a liquid that expands and contracts with temperature changes, providing accurate temperature readings.
Explosion-Proof Housing: Constructed to contain any internal explosion and prevent ignition of surrounding flammable materials.
Sealed Components: Designed to keep out dust and moisture, ensuring reliable operation in harsh conditions.
Regulatory Compliance: Meets strict safety standards such as ATEX and IECEx, making it suitable for use in designated hazardous areas.
Explosion-proof temperature control boxes with capillary sensors are essential for safe temperature management in hazardous environments. Their robust construction and reliable operation ensure compliance with safety standards, providing critical protection for both personnel and equipment in industries where risk is a significant concern.
