IIC Explosion-proof Terminal Box MAMX-08

* Enclosure material: Aluminium alloy ZL102;

* Ex mark: Ex db IIC T6...T4 Gb; Ex tb IIIC T80°C...T135°C Db IP66

* Certificate;ATEX,IECEx and TR CU

*Max Current:1500A

*Max Power consumption:800W


Explosion-proof Terminal Box

The explosion-proof terminal box is a specialized enclosure designed to house electrical connections and components in hazardous environments where there is a risk of explosion due to the presence of flammable gases, vapors, dust, or fibers. These boxes are engineered to contain any internal explosion, preventing it from igniting the surrounding atmosphere. The IIC classification denotes environments with the highest risk of explosion due to the presence of gases, vapors, or mists with very low ignition energy, such as hydrogen, acetylene, and carbon disulfide.

Features of IIC Explosion proof Terminal Box

* Cable entry

* Used in chemical, oil refining, oil exploitation, offshore oil platforms, oil tankers, military, and other hazardous areas; Suitable for cable distribution when installing electrical appliances and lamps and especially when installing electrical heat tracing systems and high-power electric heaters on site.

* Beautiful appearance: Aluminum alloy enclosure with stainless steel exposed fasteners.

* Different installation methods such as hanging, embedded, heat tracing bracket installation and different incoming cables such as ordinary rubber and plastic cable, armored cable, and heating cable.

General Technical Parameters

Explosion Protection

Gas Explosion Protection

Dust Explosion Protection


Ex d lIB Tó Gb /Ex d lIB+H Tó Gb


Ex ID A21 IP66 T80℃ Ex d lIC Tó Gb

Conformity to standards

G8 3836.1-2010 GB3836,2-2010 GB12476.1-2013 GB12476.5-201


IEC 60079-0:2011,IEC60079-1:2007,IEC60079-11:20111EC60079-31:2008

Enclosure Material


Die-casting aluminum ZL102

Ambient temperature and protection railing-40°C~+55°C,IP66
The material of the Exposed fastener


SS304/S316 stainless steel

Rafed volfage and current

V: 220-240V,380V,415V,500V,690V

A: 6A,10A,16A...630A

MAMX-08-d ⅡC

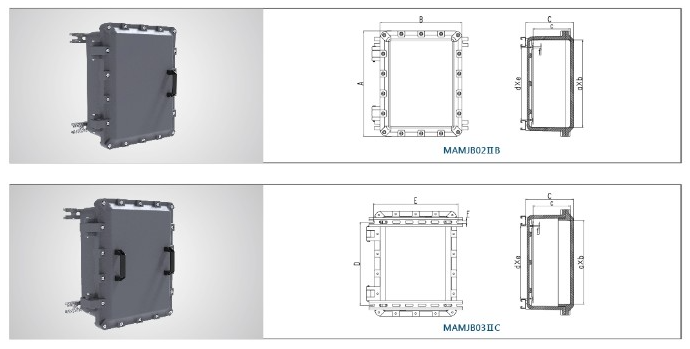

llB and llC installation schematic dimensions and difference

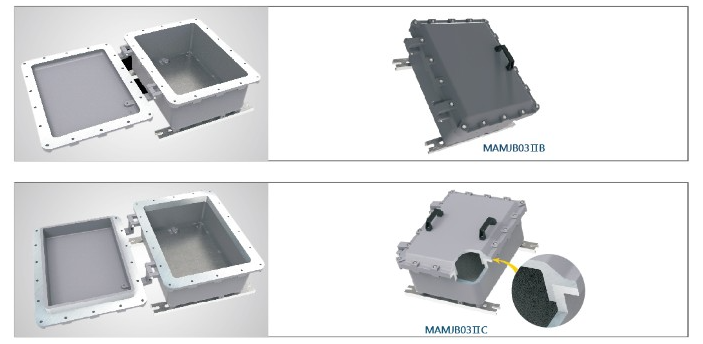

Flame-proof joint structure

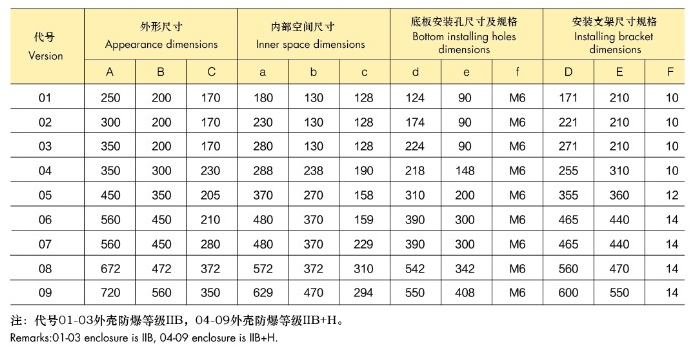

Selection table of ⅡB appearance dimension

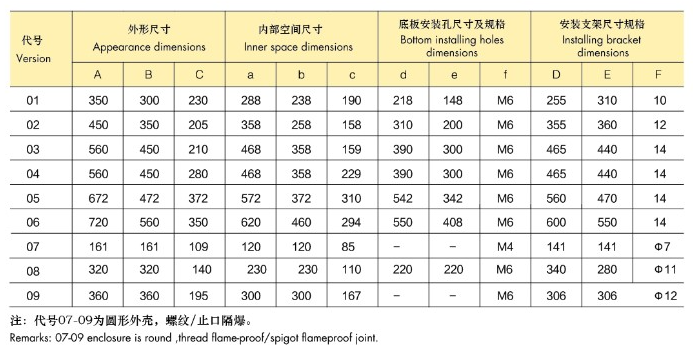

Selection table of ⅡC appearance dimension


MAMX-08-d ⅡC

An IIC explosion-proof terminal box is a specialized enclosure IIC explosion-proof terminal boxes are essential for ensuring the safety and reliability of electrical systems in the most hazardous environments. By preventing internal explosions from igniting external atmospheres and complying with stringent safety standards, these enclosures protect both personnel and equipment. Their robust construction, high IP ratings, and adaptability make them a critical component for operations in high-risk industries such as oil and gas, chemical processing, and mining.
