Explosion-proof LED Lighting Fixture, MAML02-A

* Enclosure material : Aluminium alloy ZL102

* Transparent cover material : PC , >7J

* Ex mark : Ex d IIC T6 Gb; Ex tD A21 IP66 T80°C

* Ex certificate: TR CU


Aluminum alloy explosion-proof LED lighting fixtures are specially designed to provide safe and reliable illumination in hazardous environments where there is a risk of explosion due to the presence of flammable gases, vapors, or dust. These fixtures are built to withstand harsh industrial conditions while ensuring safety and efficiency.

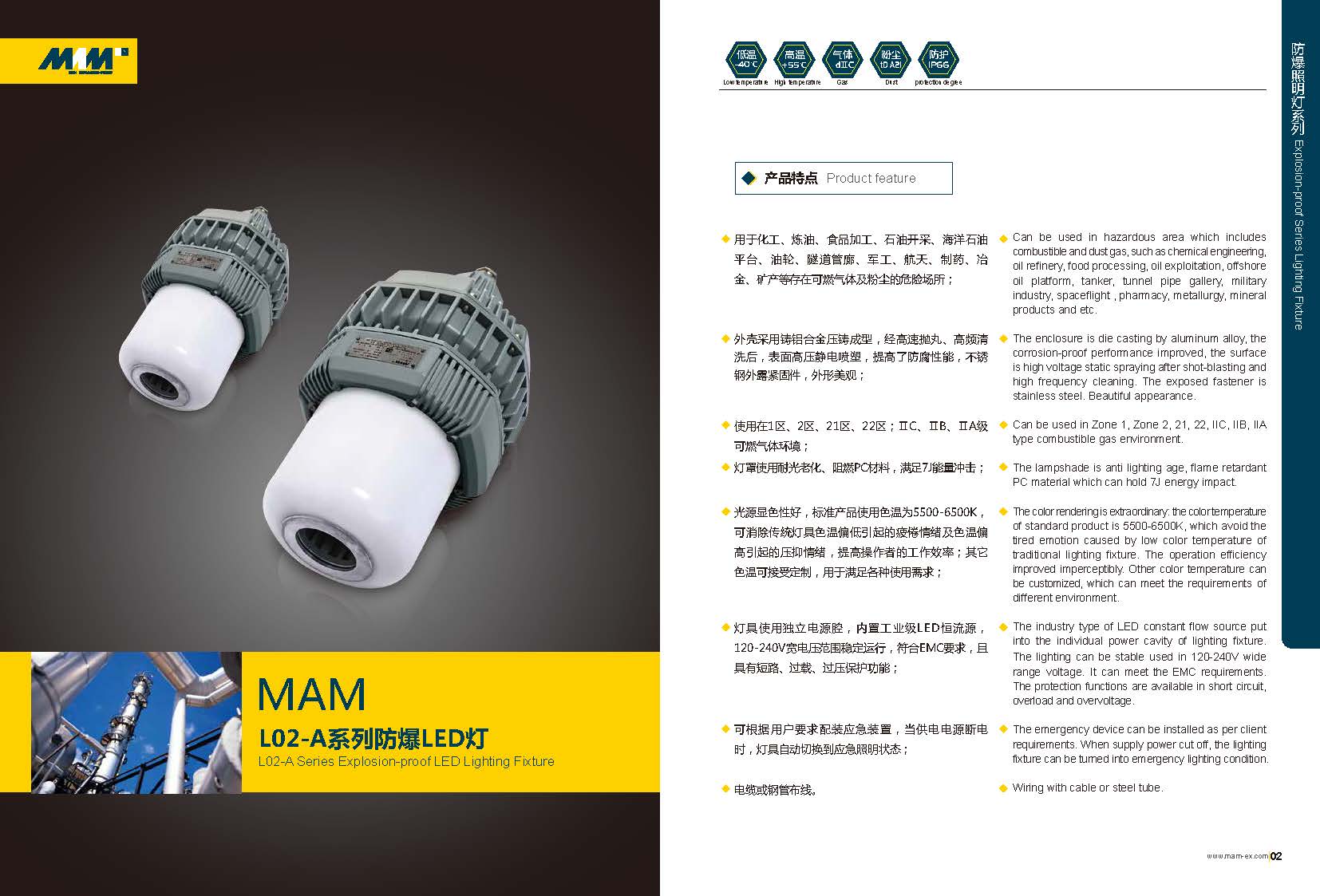

Explosion-proof LED Lighting Fixture Features

The enclosure is die casting of aluminum alloy; the corrosion-proof performance improved, and the surface is high voltage static spraying after shot-blasting and high frequency cleaning.

The exposed fastener is stainless steel. Beautiful appearance.

It can be used in Zone 1, 2, 21, 22, IIC, IIB, and IIA-type explosive gas environments.

The lampshade is anti-aging, flame retardant PC material, and can withstand 7J energy impact;

The color rendering is extraordinary. The color temperature of standard product is 5500-6500K, which can relieve traditional lighting fixture’s fatigue emotion and color temperature deviation, improve the operator's work efficiency;

The lamp uses an individual power cavity, and built-in industrial-grade constant flow source, with short circuit, overload, and overvoltage protection functions, and meets EMC requirements. The lighting can be stable under a 120-240V wide voltage range.

Emergency devices can be installed as per client requirements. When the supply power is cut off, the lighting fixture can turn to the emergency lighting condition.

Explosion-proof LED Lighting Fixture features

Aluminum alloy Explosion-proof LED Lighting Fixture Specification

* Power : 30W, 40W, 50W, 60W, 80W, 100W, 120W, 150W, 180W

* Cable entry thread : NPT3/4, M25*1.5, G3/4 ( optional )

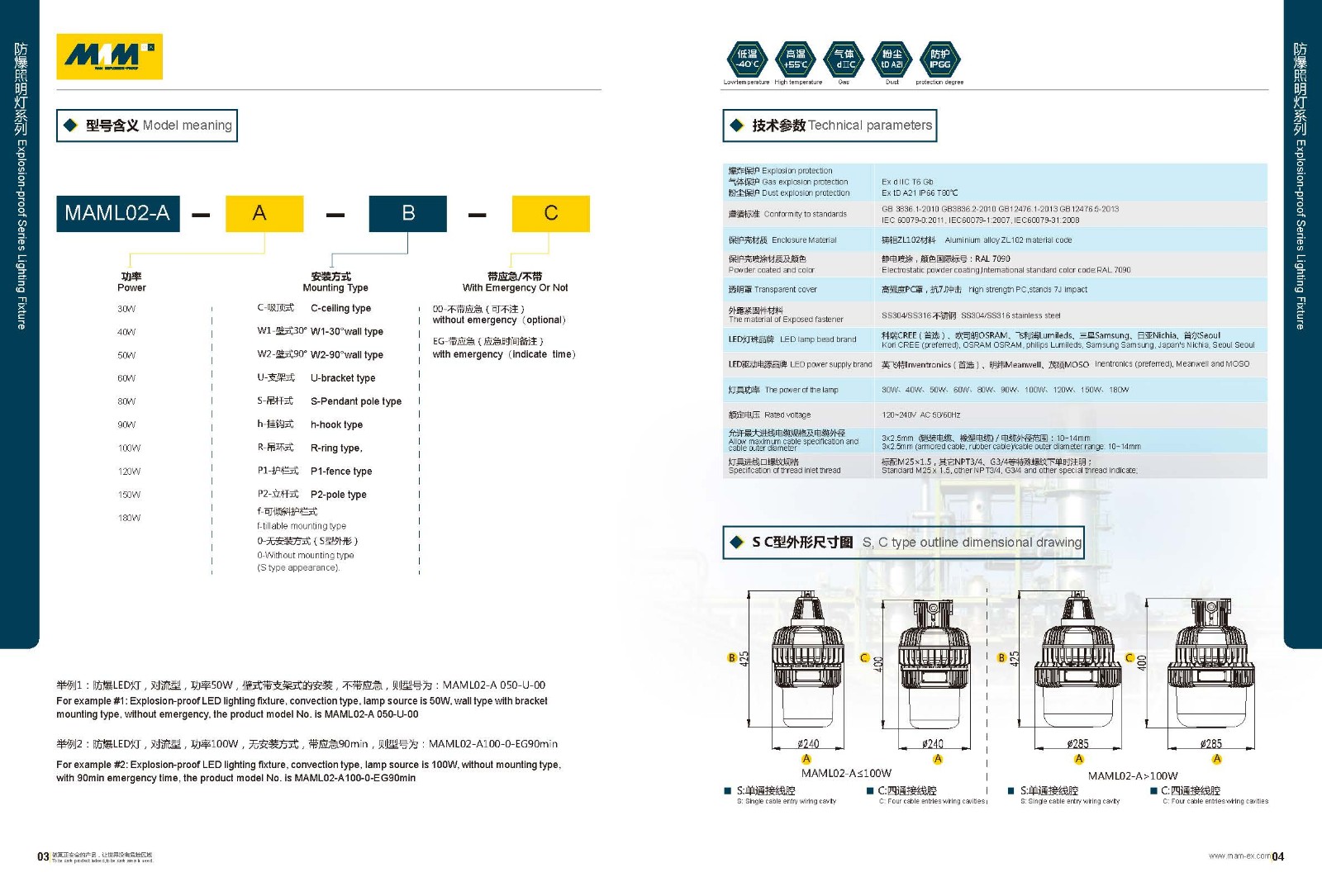

Aluminum alloy Explosion-proof LED Lighting Fixtures Technical parameters

Explosion proofGas explosion protection Dust explosion protection
Conformity standardsGB3836.1-2010 GB3836.2-2010 GB12476.1-2013 GB10631-2004 IEC60079-0-201x IEC60079-15-201x IECEx
Enclosure MaterialAluminium ZL102 material code
Powder coated and colorElectrostatic powder coating International standard color code RAL 7090
Transparent coverHigh strength PC, stands 7J impact
Exterior fastener materialSS304/SS316 stainless steel
LED lamp bead brandCREE (preferred), OSRAM, Philips LUMILEDS, Samsung, Nichia, Seoul
LED driver power supply brandInventronics (preferred), Meanwell and MOSO
Power of the lamp30W, 40W, 50W, 60W, 80W, 90W, 100W, 120W, 150W, 180W
Rated voltage120-240V AC 50/60Hz
Allow maximum incoming cable specification and outer diameter3×2.5mm (unarmored cable, rubber sheathed cable) / Armored cable outer diameter: 10-14mm
Thread size of lamp inletStandard M25×1.5, other NPT3/4, G3/4 special thread indicated separately

Explosion-proof LED Lighting Technical parameters Fixture
