What Is Explosion-Proof Panel?

Dec. 28, 2023

An explosion-proof panel, also known as an explosion-proof enclosure or junction box, is a specialized electrical housing designed to contain and mitigate the potential risks associated with explosive atmospheres. These panels are crucial in industrial settings where volatile gases, vapors, or dust particles are present, as they help prevent ignition sources from causing explosions.


The need for explosion-proof panels arises in industries such as oil and gas, petrochemical, pharmaceuticals, mining, and manufacturing, where hazardous materials are handled or processed. Explosive atmospheres can result from the presence of flammable substances combined with oxygen and an ignition source. In such environments, electrical equipment, including panels, must be carefully designed and constructed to minimize the risk of sparking or overheating.


Here are some key features and aspects of explosion-proof panels:


Construction and Materials:


Rugged Enclosures: Explosion-proof panels are typically constructed from robust materials such as stainless steel or cast aluminum to withstand harsh industrial environments and resist corrosion.

Heavy-duty Seals: Special seals and gaskets are incorporated to prevent the entry of explosive gases or dust into the enclosure.

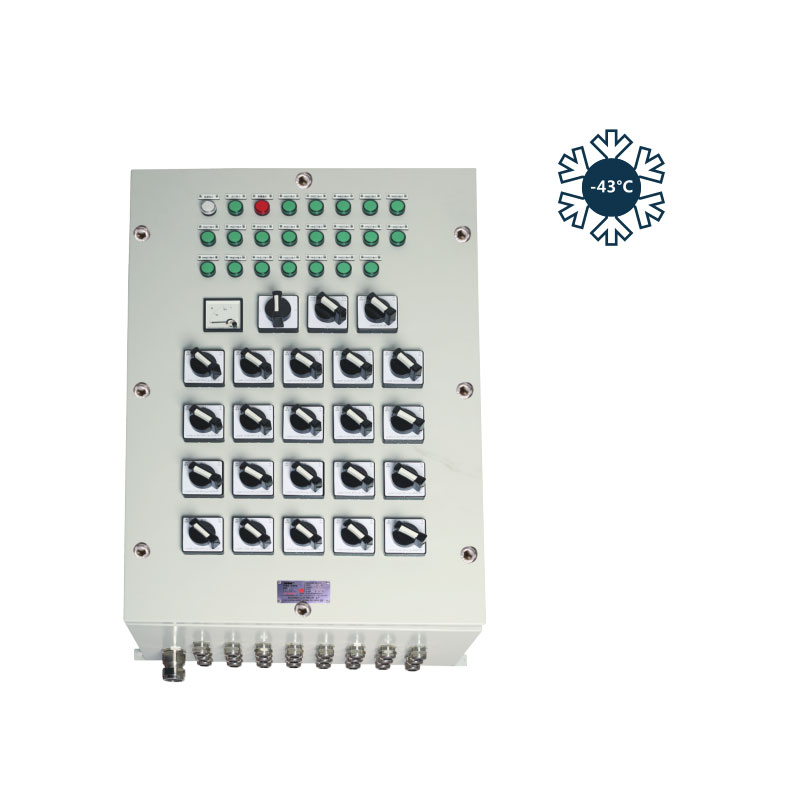

Explosion-Proof Panel

Design Standards:


Explosion-proof panels must comply with industry standards and regulations, such as those set by organizations like the National Electrical Code (NEC) in the United States or the International Electrotechnical Commission (IEC) globally.

The design standards ensure that the panels can contain any potential explosion within the enclosure, preventing it from igniting the surrounding hazardous atmosphere.

Explosion-proof Rating:


These panels are given an explosion-proof rating, typically denoted by Class, Division (or Zone), and Group. Class indicates the type of hazardous material, Division specifies the probability of the material being present, and Group identifies the type of substance.

For example, Class I is for flammable gases, Class II for combustible dust, and Class III for ignitable fibers. Divisions are classified as Division 1 (high risk) and Division 2 (lower risk).

Sealed Design:


Explosion-proof panels feature a sealed design that prevents the release of sparks or hot gases during normal operation or in the event of a fault.

This sealed design ensures that any potential ignition source within the panel does not come into contact with the surrounding explosive atmosphere.

Internal Components:


The internal components of explosion-proof panels, such as switches, circuit breakers, and wiring, are carefully selected and designed to minimize the risk of sparking.

Components may be encapsulated or housed within their own protective enclosures to contain any potential faults.

Venting Mechanisms:


In some cases, explosion-proof panels may incorporate venting mechanisms that allow the controlled release of gases in the event of an internal explosion. These vents are designed to prevent the panel from becoming a projectile while minimizing the release of hazardous materials into the surrounding area.

Testing and Certification:


Explosion-proof panels undergo rigorous testing to ensure they meet the specified standards and can withstand the harsh conditions of the intended environment.

Certification from recognized bodies, such as Underwriters Laboratories (UL) in the United States, indicates that the panel has met the necessary safety requirements.

In conclusion, explosion-proof panels play a critical role in maintaining safety in environments where explosive atmospheres are present. Their robust construction, adherence to strict standards, and careful design of internal components collectively contribute to preventing electrical equipment from becoming a potential ignition source in hazardous locations. As industries continue to prioritize safety, the demand for reliable explosion-proof solutions remains essential in safeguarding both personnel and assets in potentially explosive environments.
