How to Choose Suitable Explosion Proof LED Lights?

Jun. 17, 2024

Choosing suitable explosion-proof LED lights is crucial for ensuring safety in hazardous environments such as chemical plants, oil refineries, grain silos, and other areas where flammable gases, vapors, or dust may be present. Here are the key factors to consider when selecting explosion-proof LED lights:

1. Understand the Classification and Certification

Hazardous Location Classification: Determine the classification of the hazardous area where the lighting will be installed. This includes:

Class: Defines the general nature of the hazardous material (e.g., Class I for gases, Class II for dust, and Class III for fibers).

Division/Zone: Indicates the likelihood of the hazardous material being present (e.g., Division 1/Zone 0 or 1 for areas where hazards are present continuously or frequently, Division 2/Zone 2 for areas where hazards are present intermittently).

Groups: Classifies the specific type of hazardous material (e.g., Group A for acetylene, Group B for hydrogen).

Certification: Ensure the lights have the appropriate certification from recognized bodies such as UL (Underwriters Laboratories), ATEX (EU), IECEx (International), or other relevant standards for explosion-proof equipment.

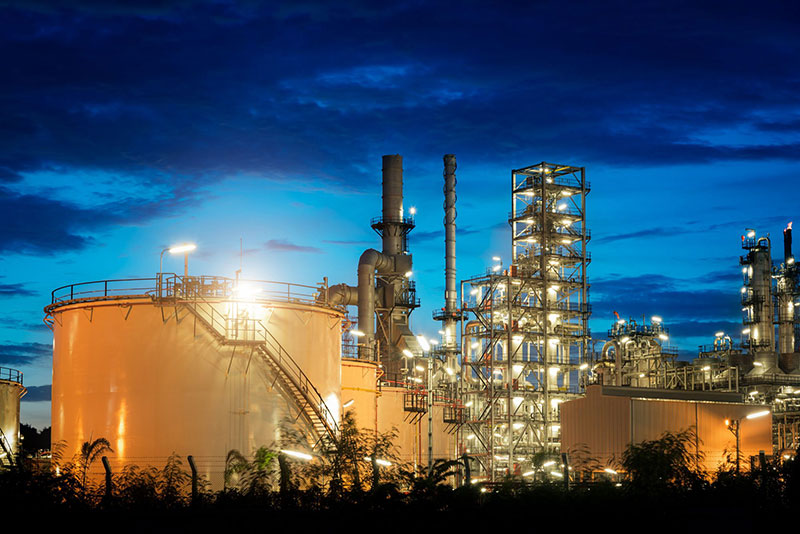

Explosion-proof Lamp Application Case

Explosion-proof Lamp Application Case

2. Ingress Protection (IP) Rating

Choose lights with a high IP rating to ensure they are protected against dust and moisture. For example, an IP66 rating means the fixture is dust-tight and protected against powerful water jets.

3. Temperature Rating (T-Rating)

Check the temperature rating to ensure the light fixtures can operate safely within the temperature range of the hazardous environment. The T-rating indicates the maximum surface temperature of the light, which should be lower than the ignition temperature of the hazardous material.

4. Material and Construction

Durability: Select lights made from robust and corrosion-resistant materials such as aluminum or stainless steel to withstand harsh conditions.

Lens Material: Ensure the lens is made from impact-resistant materials like tempered glass or polycarbonate.

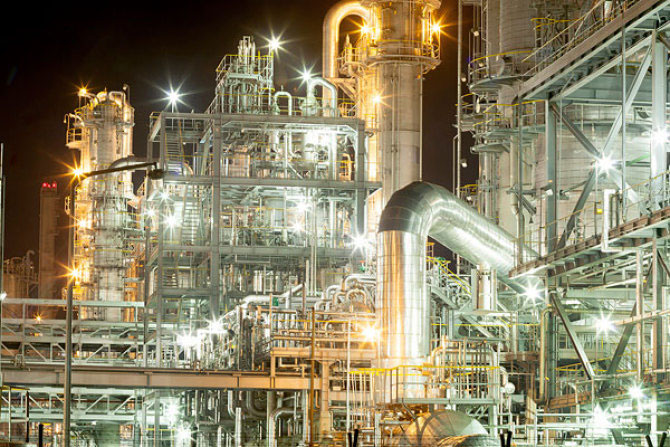

 Explosion-proof Lamp Application Case

 Explosion-proof Lamp Application Case

5. Light Output and Efficiency

Lumen Output: Ensure the light provides adequate illumination for the area while maintaining energy efficiency. Look for fixtures with high lumen output and efficacy (lumens per watt).

Color Temperature: Choose the appropriate color temperature (measured in Kelvin) for the application, such as 4000K for a neutral white light suitable for most industrial settings.

6. Mounting Options and Flexibility

Consider the mounting options available (e.g., ceiling, wall, pendant, or pole-mounted) to ensure the lights can be installed in the desired locations.

Look for adjustable fixtures to direct the light precisely where needed.

7. Maintenance and Lifespan

Choose LED lights with a long lifespan and minimal maintenance requirements. Look for features like built-in surge protection and thermal management to extend the life of the fixture.

Consider the ease of replacing parts, such as drivers or lenses, without compromising the explosion-proof integrity of the fixture.

8. Manufacturer Reputation and Support

Select lights from reputable manufacturers with a proven track record in producing high-quality explosion-proof lighting.

Ensure the manufacturer provides adequate support, including installation guidance, warranty, and after-sales service.

Practical Steps:

Assess Your Environment: Conduct a thorough risk assessment to understand the specific hazards in your area.

Consult Standards and Regulations: Familiarize yourself with relevant standards and regulations for explosion-proof lighting in your region.

Seek Expert Advice: Consult with lighting specialists or engineers who have experience with hazardous environments.

Compare Products: Review and compare products from different manufacturers, considering factors like certification, specifications, and user reviews.

Conduct Field Tests: If possible, test a sample of the lights in the actual environment to ensure they meet your requirements.

By considering these factors, you can select explosion-proof LED lights that provide safe, efficient, and reliable illumination in hazardous environments.
