Guide to Choosing the Explosion-proof Potentiometer

Apr. 25, 2024

Explosion-proof potentiometers play a critical role in various industrial applications where safety and reliability are paramount. Whether used in hazardous environments such as chemical plants, oil refineries, or mining operations, selecting the right explosion-proof potentiometer is essential for ensuring compliance with safety regulations and achieving accurate control and measurement. This comprehensive guide will provide valuable insights into the factors to consider when choosing the explosion-proof potentiometer that best suits your specific requirements.

Understanding Explosion-proof Potentiometers

Explosion-proof potentiometers are designed to withstand hazardous conditions such as the presence of flammable gases, vapors, or dust particles. They are constructed using robust materials and sealing techniques to prevent the ignition of explosive atmospheres that could occur due to electrical sparking or heating.

When selecting an explosion-proof potentiometer, it's essential to consider factors such as:

Factors to Consider

1. Hazardous Area Classification

Before choosing an explosion-proof potentiometer, determine the hazardous area classification in which it will be installed. Different hazardous areas have specific requirements and classifications (e.g., Zone 0, Zone 1, Zone 2 for gas environments; Zone 20, Zone 21, Zone 22 for dust environments). Ensure that the potentiometer is rated for the appropriate hazardous area classification to prevent the risk of ignition.

2. Explosion Protection Method

Explosion-proof potentiometers utilize various protection methods to prevent the ignition of explosive atmospheres. Common protection methods include:

  • Explosion-proof enclosures: Robust enclosures designed to contain any explosion within the housing and prevent the propagation of flames.

  • Intrinsic safety: Limiting electrical energy to levels below ignition thresholds to prevent sparks or arcs.

  • Purging and pressurization: Using inert gases to purge or pressurize enclosures, preventing the ingress of hazardous substances.

Choose a potentiometer with the appropriate explosion protection method based on the specific requirements of your application and the regulatory standards applicable to your industry.

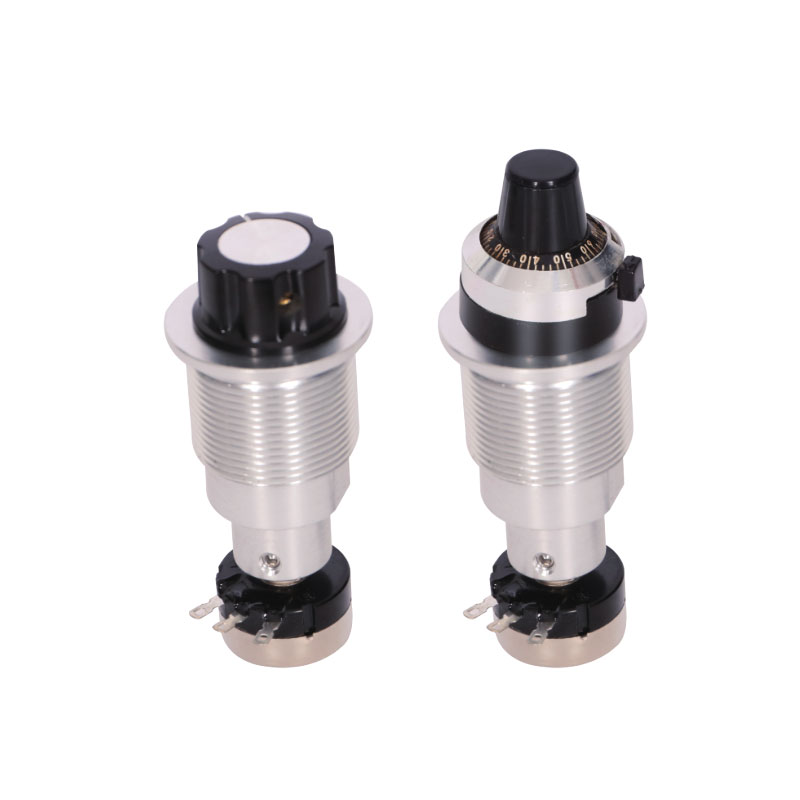

Explosion-proof Potentiometer

Explosion-proof Potentiometer

3. Environmental Conditions

Consider the environmental conditions in which the potentiometer will be operating, including temperature extremes, humidity, and exposure to corrosive substances. Ensure that the potentiometer is designed to withstand these conditions and is constructed from materials resistant to corrosion and degradation.

4. Accuracy and Resolution

Pay attention to the accuracy and resolution requirements of your application, as these factors can significantly impact performance and control precision. Choose a potentiometer with the appropriate accuracy and resolution specifications to ensure reliable measurement and control of variables such as position, speed, or temperature.

Questions and Answers

Here are some common questions people have about choosing explosion-proof potentiometers:

Q: What is the difference between explosion-proof and intrinsically safe potentiometers?

A: Explosion-proof potentiometers are designed to contain any explosion within the housing, while intrinsically safe potentiometers limit electrical energy to prevent ignition in hazardous environments.

Q: How do I determine the hazardous area classification for my application?

A: Consult regulatory standards such as NEC (National Electrical Code) or IECEx (International Electrotechnical Commission System for Certification to Standards Relating to Equipment for Use in Explosive Atmospheres) to determine the hazardous area classification and corresponding protection requirements.

Q: Can explosion-proof potentiometers be used in non-hazardous environments?

A: Yes, explosion-proof potentiometers can be used in non-hazardous environments, although they may be over-engineered for such applications. However, they provide an extra level of safety and durability compared to standard potentiometers.

Choosing the right explosion-proof potentiometer is essential for ensuring safety, compliance, and reliable performance in hazardous environments. By considering factors such as hazardous area classification, explosion protection method, environmental conditions, accuracy, and resolution, you can select the potentiometer that best meets your specific requirements.
